AMD Xilinx RFSoC Gen1 Kit for LTE

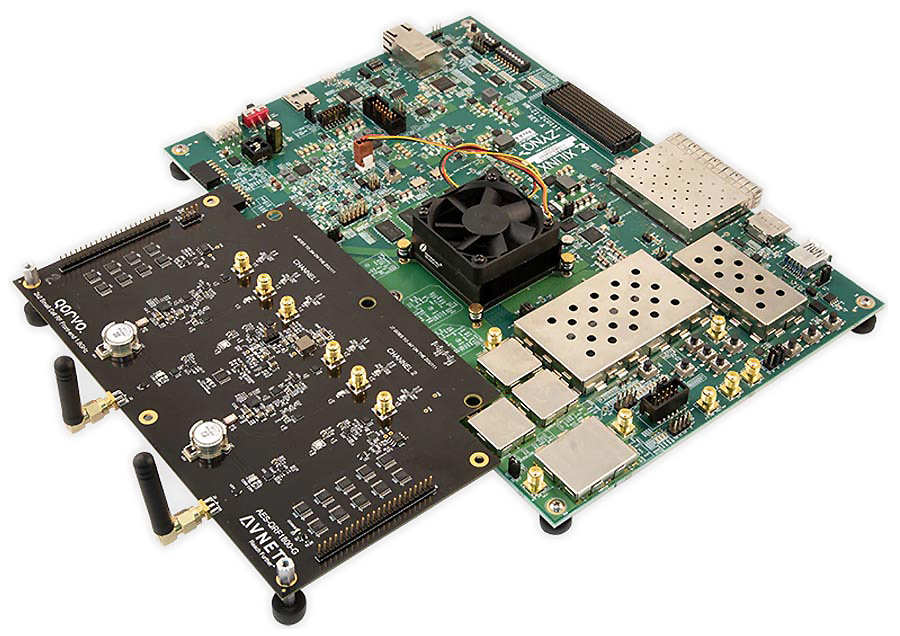

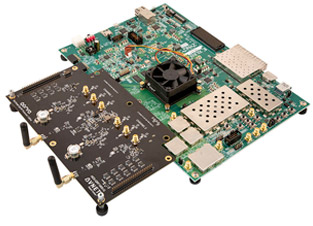

The Avnet Zynq® UltraScale+TM RFSoC Development Kit enables system architects to explore the entire signal chain from antenna to digital using tools from MathWorks and industry-leading RF components from Qorvo. We extend the functionality of the AMD Xilinx Zynq UltraScale+ RFSoC ZCU111 Evaluation Kit by adding a Qorvo 2-Channel RF Front-end 1.8 GHz Card for over-the-air transmission, plus native connection to MATLAB® & Simulink® with Avnet's RFSoC Explorer® application.
Starter Kit (In Stock): AMD Xilinx Zynq ZCU111 Evaluation Kit, Qorvo 2-Channel RF Front-end 1.8 GHz Card, and MATLAB® & Simulink® with Avnet's RFSoC Explorer® application.

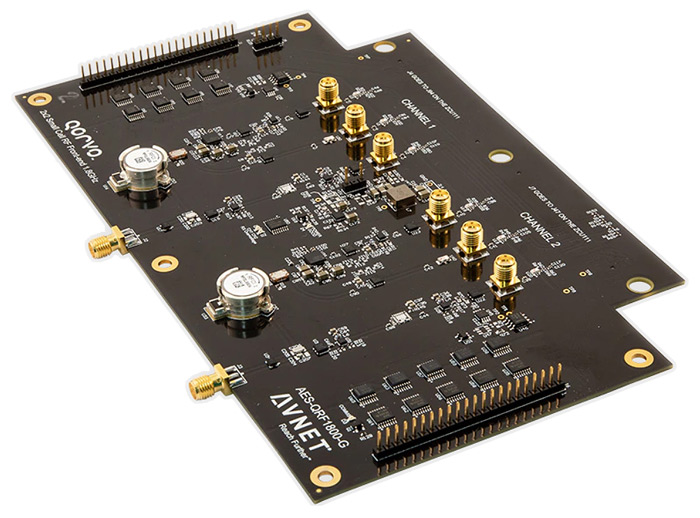

Qorvo 2-Channel RF Front-end 1.8 GHz Card: The Qorvo 2-Channel RF Front-end 1.8 GHz Card extends the functionality of the AMD Xilinx Zynq UltraScale+ RFSoC ZCU111 Evaluation Kit, enabling over-the-air transmission, plus native connection to MATLAB® & Simulink® with Avnet's RFSoC Explorer® application.
The AMD-Xilinx RFSoC Gen1 Kit is no longer in production.
Features
- Avnet RFSoC Explorer for Signal Capture & Analysis
with MATLAB and Simulink - Radio-in-the-loop co-simulation (Gigabit Ethernet)
- Over-the-air testing with 2x2 LTE 1800MHz FDD front end
- Direct-RF sampling without an external RF mixer
Target Applications
- 3G/4G/5G Commercial wireless communications
- Heterogeneous small cells
- Satellite communications
- Software Defined Radio
- Pre-Distortion Power Amplifier Linearization
- Test and measurement / instrumentation
- Cellular Testers
- Channel sounding
- Aerospace and Defense
- Tactical radio
- Mil Sat Com
- Cockpit Radios
- UAVs
- Technical Documents
- Reference Designs
- Technical Specifications
- Community Posts
- FAQS
| Specification | Description |
|---|---|
| MEMORY |
|
| VIDEO DISPLAY |
|
| ETHERNET |
|
| GPIO |
|
| INTERFACE STANDARDS |
|
| USB |
|
Do Avnet's products come with a warranty? ... more

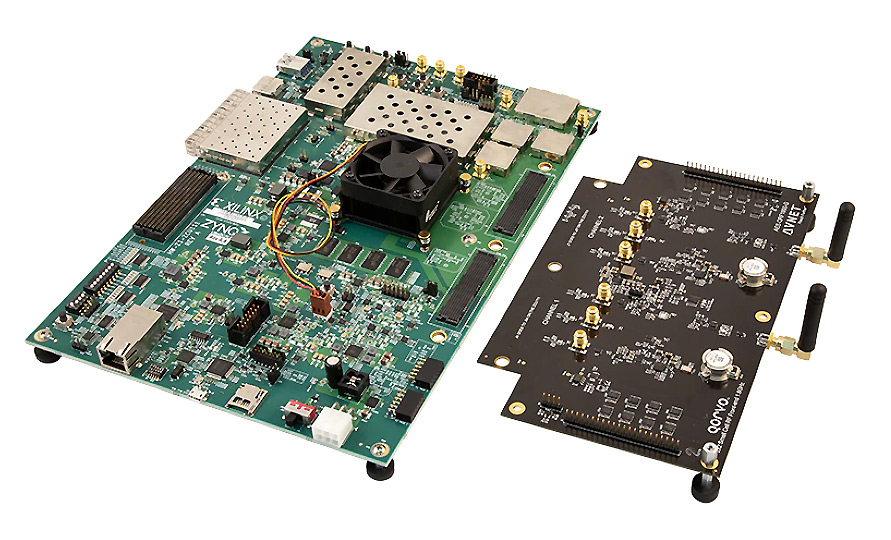

- AMD Xilinx Zynq UltraScale+ RFSoC ZCU111 Evaluation Kit
- Qorvo 2x2 Small Cell RF Front-end 1.8GHz Card
- 2x multi-band LTE stub antenna
- Avnet RFSoC Explorer for MATLAB and Simulink
